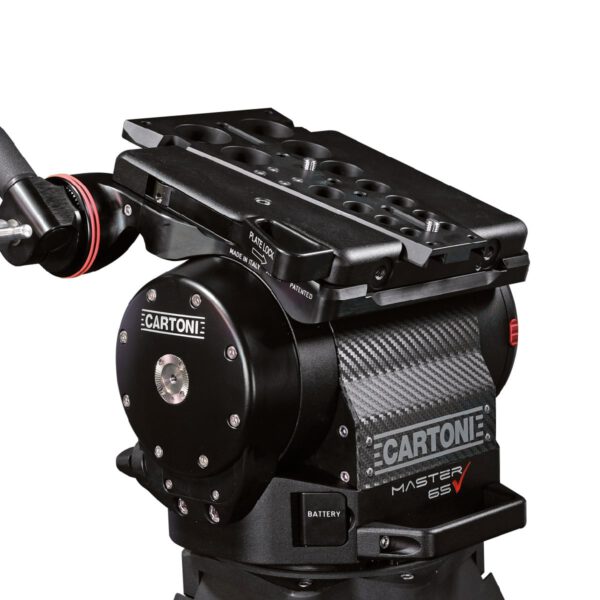

Cartoni Master 65 Studio HD Fluid Head with Mitchell Base – Max Payload 65kg.
Designed to support camera weights from 20 Kg (44 lbs) to 65 Kg (143 lbs), the new MASTER 65 is ideal for outdoor Broadcast with bulky boxed lenses.
It combines a wide range of counterbalance capabilities, performing prefect balance at any tilt angle with a new CARTONI Fluid drag system based on silicon film.
The new drag ensures almost freewheeling at its minimum up to consistent drag for smooth and slow movements with long focal lengths.
This rugged Head comes equipped with the standard Dovetail platform on a large sliding platform.
The micrometric movements of the slide are operated by a handy crank placed under the slide.
All settings are ergonomic and placed in the right positions.
Pan Bars are compatible with the Vinten attachment.
The Master 65 comes equipped with a digital readout for counterbalance reference and illuminated spirit bubble.
The flat base interfaces with Mitchel mount tripods, Pedestals and other supports via 4 bolts fixing system, 2 ¾” castle-nut or a 3/8″ threaded central knob.
Optional 150mm bowl base adapter can be easily applied.
Optional Pedestal adapter can be easily applied.
Technical Data |
Included in the box |
|
Weight | 16 kg/35 lbs | Master 65 Fluid Head |
Minimum Payload Capacity | 20 kg/44 lbs | Tie down knob Master series |
Maximum Payload Capacity | 80 kg/176 lbs | Camera Plate |
Diameter | Flat | Telescopic Pan Bar for Master series |
Fluid Drag | Continuous | |
Counterbalance | Continuous | |
Pan Range 360° | Tilt Range +/-65° | |
Temperature Range | -40°/+60° Celsius |
Weight | 16 kg |
---|
