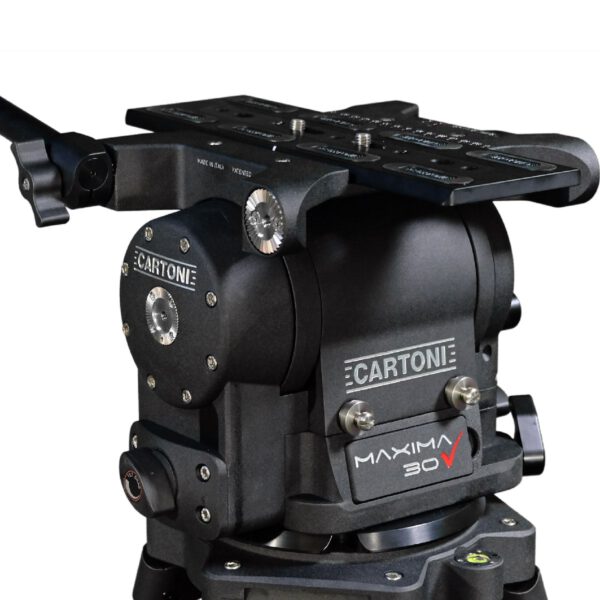

Cartoni Maxima 30 Fluid Head

8,928.00 Excl. VAT

Availability: In Stock

Cartoni Maxima 30 Cine Fluid Head (HM3100)

Cartoni Maxima 30 Cine Fluid Head with Mitchell Base – Max Payload 30kg.

Cartoni Maxima 30 Cine Fluid Head with Mitchell Base – Max Payload 30kg.

The ultimate innovation in CARTONI Fluid Heads designed for today’s Digital Cinematography.
The fluid movements in both Pan & Tilt are exceptionally smooth with that progression going from almost freewheeling to an extremely consistent maximum drag, the starts and stops are extraordinarily precise.
The famed “wing” counterbalance will assists any Camera payload from 3 (7 lbs) to 30 kg (66 lbs) with a perfect response throughout the entire +/- 90 ° range and can reach up to 40 kg (88 lbs) at 100mm CG.

The Maxima 30 includes all the advantages of the famed CARTONI MAXIMA Fluid Head but in a more compact size at a reduced weight of 10,5 kg (23 lbs).
For ease of use a digital read out indicates counterbalance, Pan & Tilt fluid settings at a glance and the bubble level is illuminated.
To make the Maxima 30 completely user friendly, the Pan & Tilt brakes are conveniently placed on the left side of the head as the camera plate latch, which can be activated with one hand both to disengage the new safety lock and free the camera plate completely.

The camera plate stage accepts all industry standard plates as ARRI, RED, etc.
with a sliding run of 140mm clearly referenced by a scale; It also features 4 rosettes attachment for Pan bars and the standard configuration comes with right telescopic pan bar and a left front pan handle.
Front box attachment and eyepiece extension holders are optional.
The head comes with a telescopic pan bar and a short front pan bar.

With the classic Mitchell base the Maxima 30 interfaces with all flat base Mitchel tripods and platforms.

Optional 150mm bowl base adapter can be easily applied.
Optional Pedestal adapter can be easily applied.

Technical Data

 Included in the box

Weight 10.5 kg/23 lbs Maxima 30 Fluid Head
Minimum Payload Capacity 3 kg/7 lbs Tie down knob Master series
Maximum Payload Capacity 30 kg/66 lbs Camera Plate – Cine style slide
Bowl Diameter Flat Telescopic Pan Bar for Master series
Fluid Drag Continuous Short Handle Maxima 30
Counterbalance Continuous
Pan Range 360° Tilt Range +/-90°
Temperature Range -40°/+60° Celsius

Weight 10.5 kg
