Cartoni Maxima 5.0 Fluid Head

10,188.00 Excl. VAT

Availability: In Stock

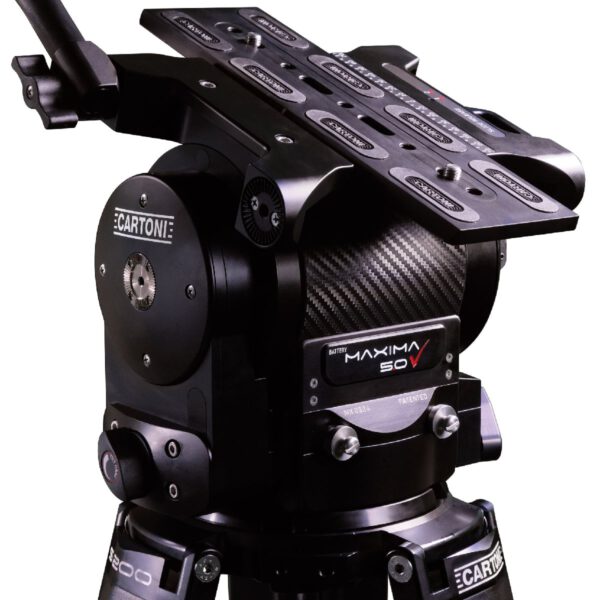

Cartoni Maxima 5.0 Cine Fluid Head (HM5000)

Cartoni Maxima 5.0 Cine Fluid Head with Mitchell Base – Max Payload 50kg.

Cartoni Maxima 5.0 Cine Fluid Head with Mitchell Base – Max Payload 50kg.

The new Maxima 5.0 is the ultimate answer for Digital Cinematography with heavy duty packages.
Its outstanding patented counterbalance compensates payloads from zero to 50 kg, with “perfect balance” throughout the 180° tilt range.
The patented continuous fluid drag system performs from almost freewheeling to extremely consistent drag for maximum versatility and perfect diagonal shots.

The Maxima 5.0 knobs and levers are ergonomically placed to ensure camera operators complete ease-of-use in any situation, whether in the studio, location or during outside shooting.
Drag and counterbalance settings are monitored on a large digital display.
The large sliding camera plate is compatible with Arri , Sony and O’Connor slides.
The head comes with a telescopic pan bar and a short front pan bar.

With the classic Mitchell base the Maxima 5.0 interfaces with all flat base Mitchel tripods and platforms.

Optional 150mm bowl base adapter can be easily applied.
Optional Pedestal adapter can be easily applied.

Technical Data

 Included in the box

Weight 13 kg/29 lbs Maxima 5.0 Fluid Head
Minimum Payload Capacity 3 kg/7 lbs Tie down knob Master series
Maximum Payload Capacity 50 kg/110 lbs Camera Plate – Cine style slide
Bowl Diameter Flat Telescopic Pan Bar Maxima 5.0
Fluid Drag Continuous Short Handle Maxima 5.0
Counterbalance Continuous
Pan Range 360° Tilt Range +/-90°
Temperature Range -40°/+60° Celsius

Weight 13 kg
