Cartoni Pedestal P90

20,314.00 Excl. VAT

Availability: In Stock

Cartoni Pedestal P90 (P090)

Cartoni Pedestal P90 – Max Payload 90kg.

Cartoni Pedestal P90 – Max Payload 90kg.

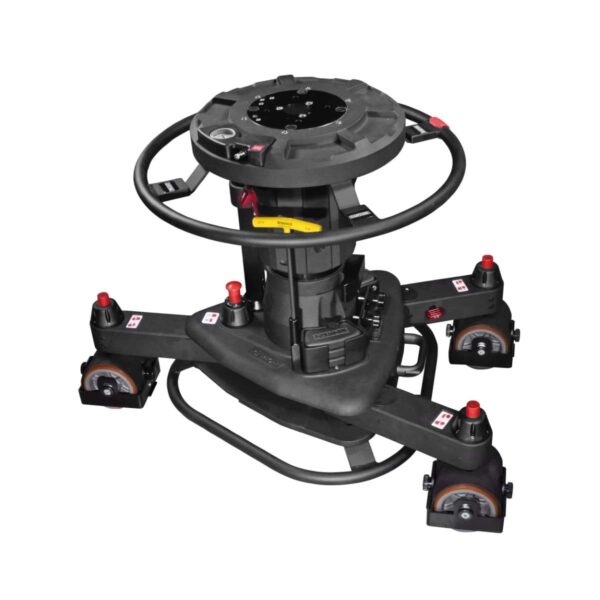

Extremely versatile, the CARTONI P90 two-stage Pedestal is designed to support camera/lens combinations up to 90 Kg/198 lbs covering the entire range of Studio and OB configurations. The system is compact and portable, the 2 stage column performs an on-shot stroke of 74 cm with a smooth and precise movement.

The sturdy and yet lightweight dolly is equipped with high precision double wheels interlocked by a special designed chain allowing accurate travelling and steering, even on-shot. The crab position is also available for narrow door ways.

All operating devices and control display are at the cameramen easy access. The pneumatic column works on simple compressed air which can be loaded with a compressor or a simple hand pump. The piston innovative design avoids complicated balance settings.

The system interfaces with all flat base, 4-bore holes heads or any other bowl based head with an adapter. This configuration has been designed with larger and higher wheels (160 mm width) suitable for OB Van and Studio heavy duty applications.

With Pedestal Adapter (AH856) it is possible to mount all the fluid heads Flat Base

Technical Data

 Included in the box

Weight 60 kg/132 lbs Pedestal P90
Maximum Pressure 15 atm/198 psi Hand pump – 10 bar
Maximum Payload Capacity 90 kg/198 lbs Optional:
On-Shot Stroke 74 cm/29.1″ Pedestal Adapter 100mm / 150mm
Wheel Diameter 12.5 cm/5″ Adapter Fast Lock
Minimum Height 72 cm/28″ Adapter Disc
Maximum Height 146 cm/57″ PTZ Universal Plate or Pedestal Plate
Doorway Width Minimum

Doorway Width Maximum

68 cm/27″

97 cm/38″

Skatewheels for use track

Weight 60 kg
