Craltech KiO Portable 12G-SDI Video Workstation
Price available on request!
(Use -Add To Quote- button below.)
Brand:
Availability:
In Stock
One portable toolkit. More possibilities.
The Craltech KiO is an upcoming portable 12G-SDI video workstation for conversion, distribution, multiview and audio embedding. Its built-in screen and controls support standalone operation.
Launch planned for ISE 2027. Ask Villrich about configuration, pricing and availability.
- Five configurable 12G-SDI BNC connections
- 4K HDMI input and output; up to 2160p60
- 3.5-inch screen, encoder and five function keys

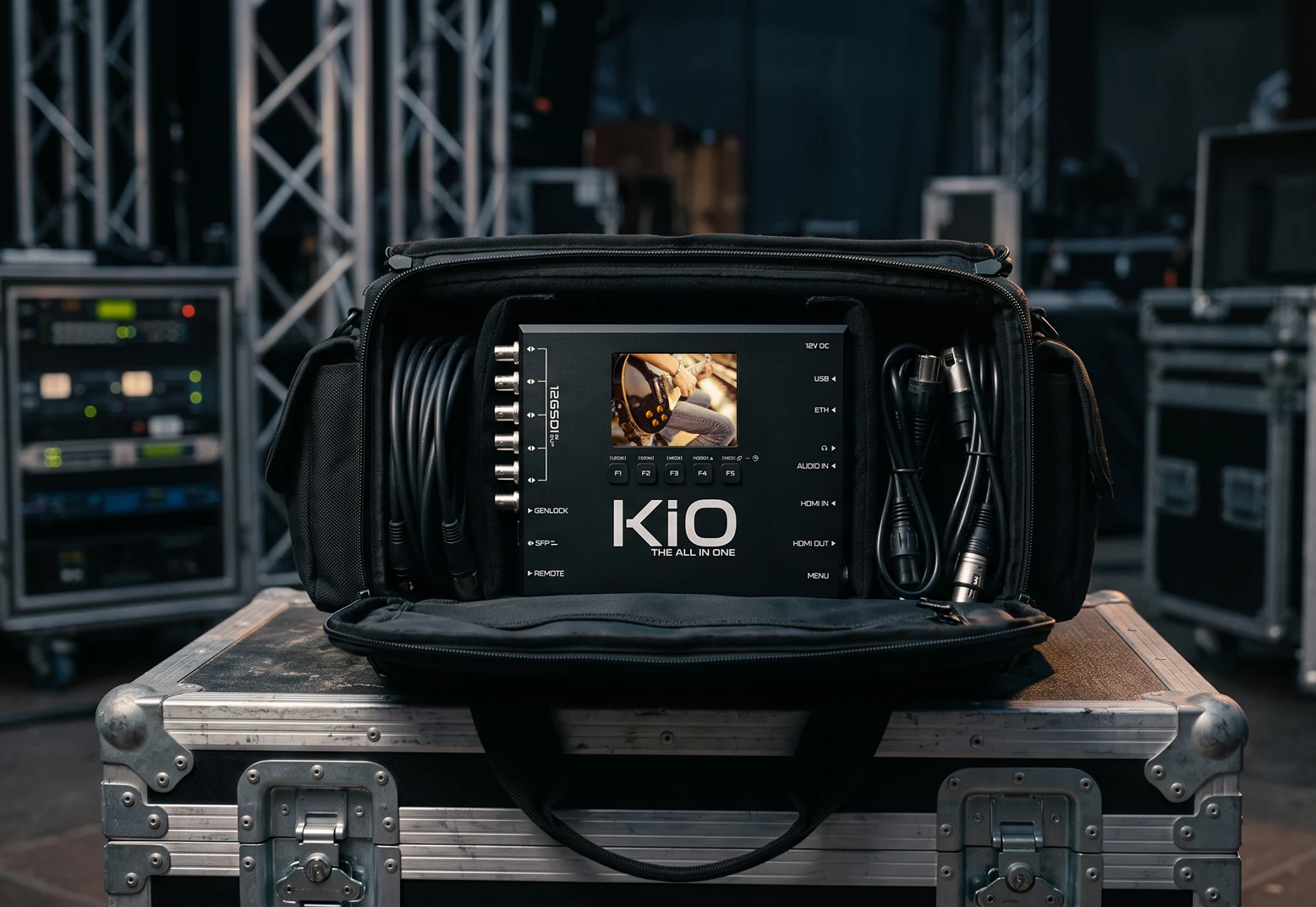

A compact signal toolkit for location work.
The Craltech KiO is an upcoming portable 12G-SDI video workstation for conversion, distribution, multiview and audio embedding. Its built-in screen and controls support standalone operation.
Coming at ISE 2027
Craltech plans the introduction for 2–5 February 2027. Pricing and delivery are to be confirmed. Scope, Monitor, Wall and Mix depend on the selected model or tool licence.

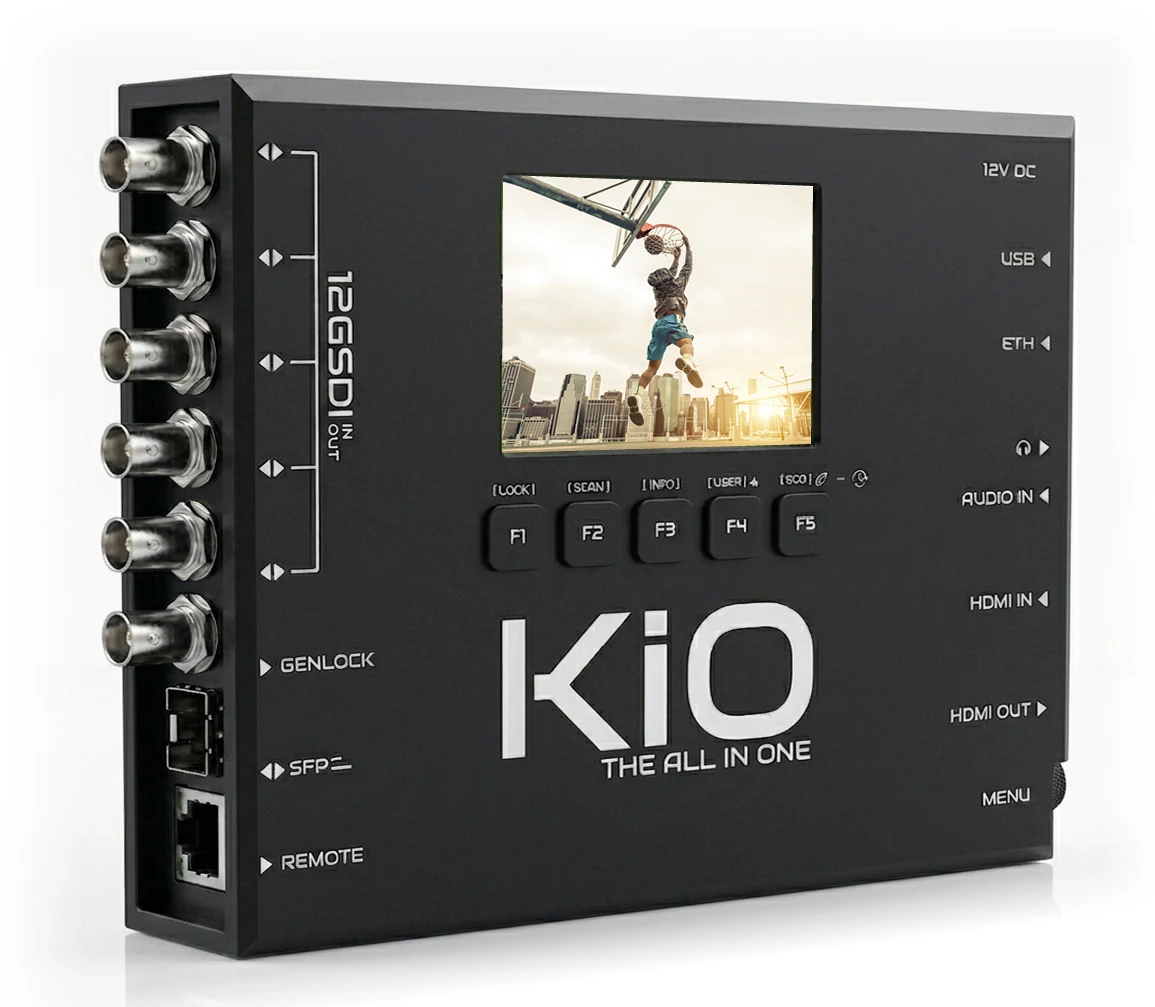

Specifications & connections
| SDI | 5 × 12G-SDI BNC, configurable as inputs or outputs |
|---|---|
| HDMI | 1 × 4K input and 1 × 4K output |
| Formats | Up to 2160p60; 8K through quad-link |
| Control | 3.5-inch TFT, rotary encoder, five keys, Ethernet and USB |
| Reference and audio | Genlock; 3.5 mm analogue stereo in/out |
| Expansion | SFP slot; fibre or SMPTE ST 2110 in HD, depending on module |
| Mounting | VESA 75 |
| HDCP | Protected HDMI sources are not supported |
Models & optional tools
| KiO Cross | Base conversion, multiview, distribution and audio toolkit |
|---|---|
| KiO Live | Cross + Mix + Wall |
| KiO Camera | Cross + Monitor + Scope |
| KiO All-in-One | Cross and all four tools |
Scope adds signal measurement; Monitor adds LUT and camera-viewing tools; Wall adds video-wall processing; Mix adds production switching. Tool licences are permanent and remain with the unit.
Manufacturer information
Discuss your KiO setup: sales@villrich.com · +31 6 22744781
